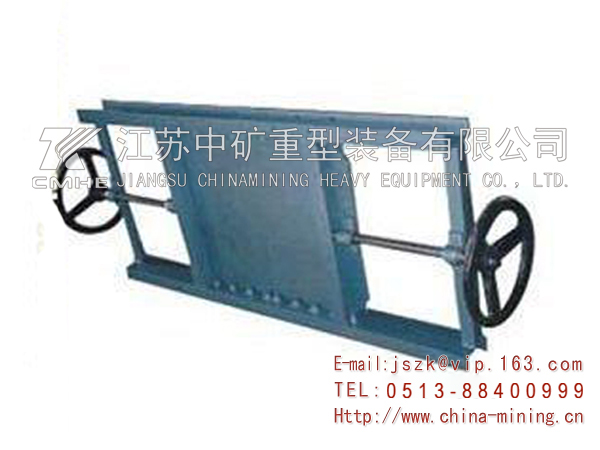

物料調節閘門是我公司根據氣力輸送工況需求研制的一種調節、切斷型閘門，廣泛適用于建材、冶金、礦山、輕工、玻璃等行業的氣力輸送系統。

Material adjustable valve is a newest adjustable, cut-off valve according to pneumatic conveying work condition. It is widely used in building material, metallurgical, ore, light industry and glass etc. pneumatic conveying industry.

結構特點：
        物料調節閘門采用優質碳鋼焊接而成，分上下兩個通道，下通道為充氣層，上通道為輸送物料層，中間為透氣層。螺旋型閘板可任意調節閘門開度，特別適用于無粘度的干燥粉料，細微顆粒料等。具有能耗小、無噪音、無污染，少維修、無卡阻、操作方便、使用壽命長等特點。

Structure features
        Material adjustable valve is welded with excellent carbon. It has two passages which is up and down. The down layer is aerating layer, up layer is conveying material and the middle layer is ventilated layer. Screw gate can adjust the open of valve freely, especially clay less and dry material, fine grain material etc. It is characterized by low consumption, no noise, no pollution, small maintenance, no blockage, convenient operation and long life etc.

性能參數(Structure features)

工作原理：
        物料調節閘門由風機給予低壓小容量空氣經下通道入氣口充氣層充氣，氣體透過沸騰板均勻向上噴吹，鼓動物料向上位移，物料自重下落時由設備安裝斜度而產生位移，不斷重復致使物料向前位移。調節閘門由絲桿閘板及密封副等組成，由人工轉動手輪帶動絲桿旋轉，使閘門隨著螺旋絲桿產生位移，起到任意調節或切斷的作用。
Work principle
        Material adjustable valve is given small air through air inlet passage from aerating layer by the fan. Air is sprayed through boiling plate upward, make material upward. Material will move and fall with the gravity because of slope, moving forward again and again. Adjustable valve is made up of screw gate of silk pole and sealing pairs etc. It is rotated hand wheel in hand driving silk pole. Screw silk pole will move and adjust or cut off it.

使用說明：
        安裝前請檢查閘門內腔有無雜物附著，沸騰板受潮沒有，如沸騰板受潮請更換后再進行安裝，否則影響使用效果。檢查各傳動部分是否靈活可靠。法蘭間連接需加密封墊片后再均勻擰緊螺栓。調試時，人工轉動手輪，順時針旋轉為關，反之為開，運行無卡阻現象即可。

Operation description
        Check screw gate whether there are sundries attachment before installation and boiling plate is moisture. If boiling plate is moisture, change and install it. Otherwise it will have effect on the effect. Check all driving part whether they are sensitive and dependable. Flange connections should add sealing gasket, then tight the bolt.
         When commissioning, rotate the hand wheel in hand. The clockwise rotation is off and counter clockwise rotation is on. If there is no blockage, it is OK.

WCF-Z外形圖：                   WCF-X外形圖：

WCF-Z/X外形連接尺寸WCF-Z X Outline connection dimension：

訂貨須知：
選用訂貨時請參照產品樣本注明產品規格、型號及技術參數(使用溫度、設備況、介質性質等)。
表格中示列規格、用于特殊介質或其它特殊要求，請與我公司經銷部、技術部系，可為您另 行設計、制造。
Notes for order
Please note the specification, type and technical parameter(applied temperature, equipment condition and media character etc.) when placing an order.
The specification not listed in the list is for special media or other special requirement. Please contact with our sales department and technical department. We can supply design and manufacture for the customer.
